TURN OFF ALL POWER BEFORE BEGINNING YOUR INSTALLATION

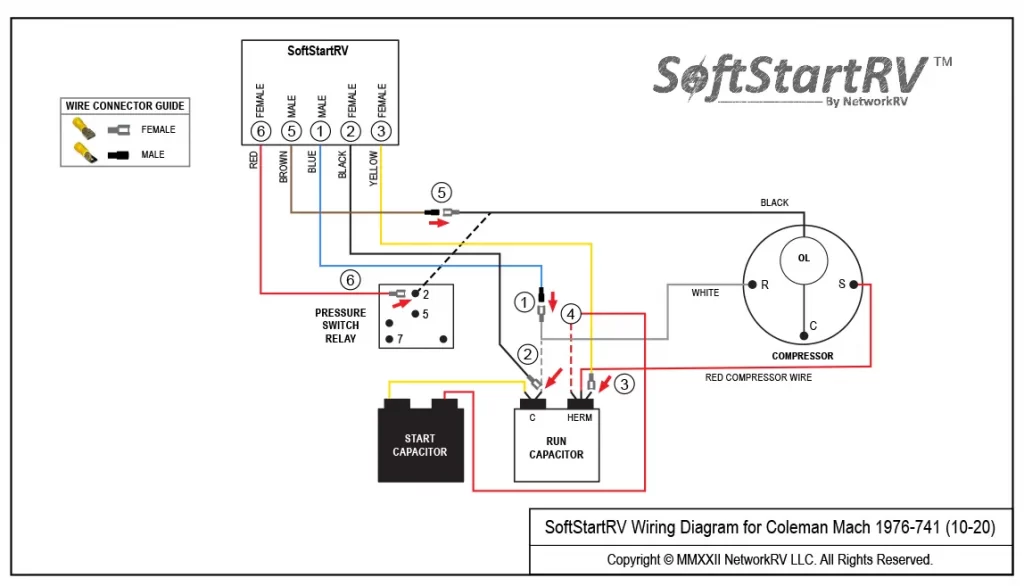

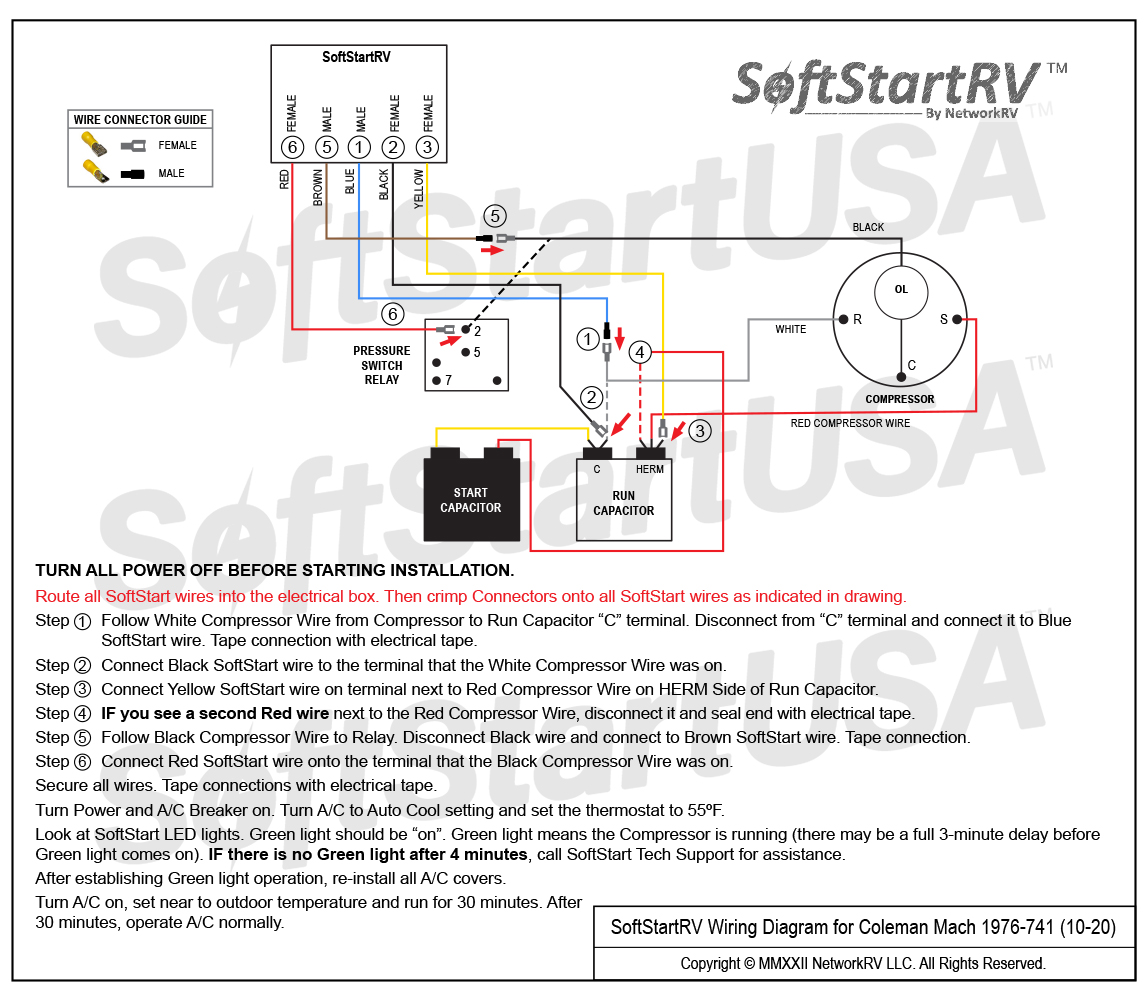

SoftStartRV Wiring Diagram for Coleman Mach 1976-741 (10-20)

Instructions

Copyright © 2022 NetworkRV LLC. All Rights Reserved.

TURN ALL POWER OFF BEFORE STARTING INSTALLATION.

Route all SoftStart wires into the electrical box. Then
crimp Connectors onto all SoftStart wires as indicated in drawing.

Step 1. Follow White Compressor Wire from Compressor to Run
Capacitor “C” terminal. Disconnect from “C” terminal and connect it to Blue
SoftStart wire. Tape connection with electrical tape.

Step 2. Connect Black SoftStart wire to the terminal that
the White Compressor Wire was on.

Step 3. Connect Yellow SoftStart wire on terminal next to
Red Compressor Wire on HERM Side of Run Capacitor.

Step 4. IF you see a second Red wire next to the Red
Compressor Wire, disconnect it and seal end with electrical tape.

Step 5. Follow Black Compressor Wire to Relay. Disconnect
Black wire and connect to Brown SoftStart wire. Tape connection.

Step 6. Connect Red SoftStart wire onto the terminal that
the Black Compressor Wire was on.

Secure all wires. Tape connections with electrical tape.

Turn Power and A/C Breaker on. Turn A/C to Auto Cool
setting and set the thermostat to 55ºF.

Look at SoftStart LED lights. Green light should be “on”.
Green light means the Compressor is running (there may be a full 3-minute delay
before Green light comes on). IF there is no Green light after 4 minutes, call
SoftStart Tech Support for assistance.

After establishing Green light operation, re-install all
A/C covers. Turn A/C on, set near to outdoor temperature and run for 30
minutes. After 30 minutes, operate A/C normally.
