TURN OFF ALL POWER BEFORE BEGINNING YOUR INSTALLATION

Coleman Mach 1976A363

© 2022 Network RV LLC. All rights reserved.

TURN ALL Power and Breakers OFF BEFORE Starting Install

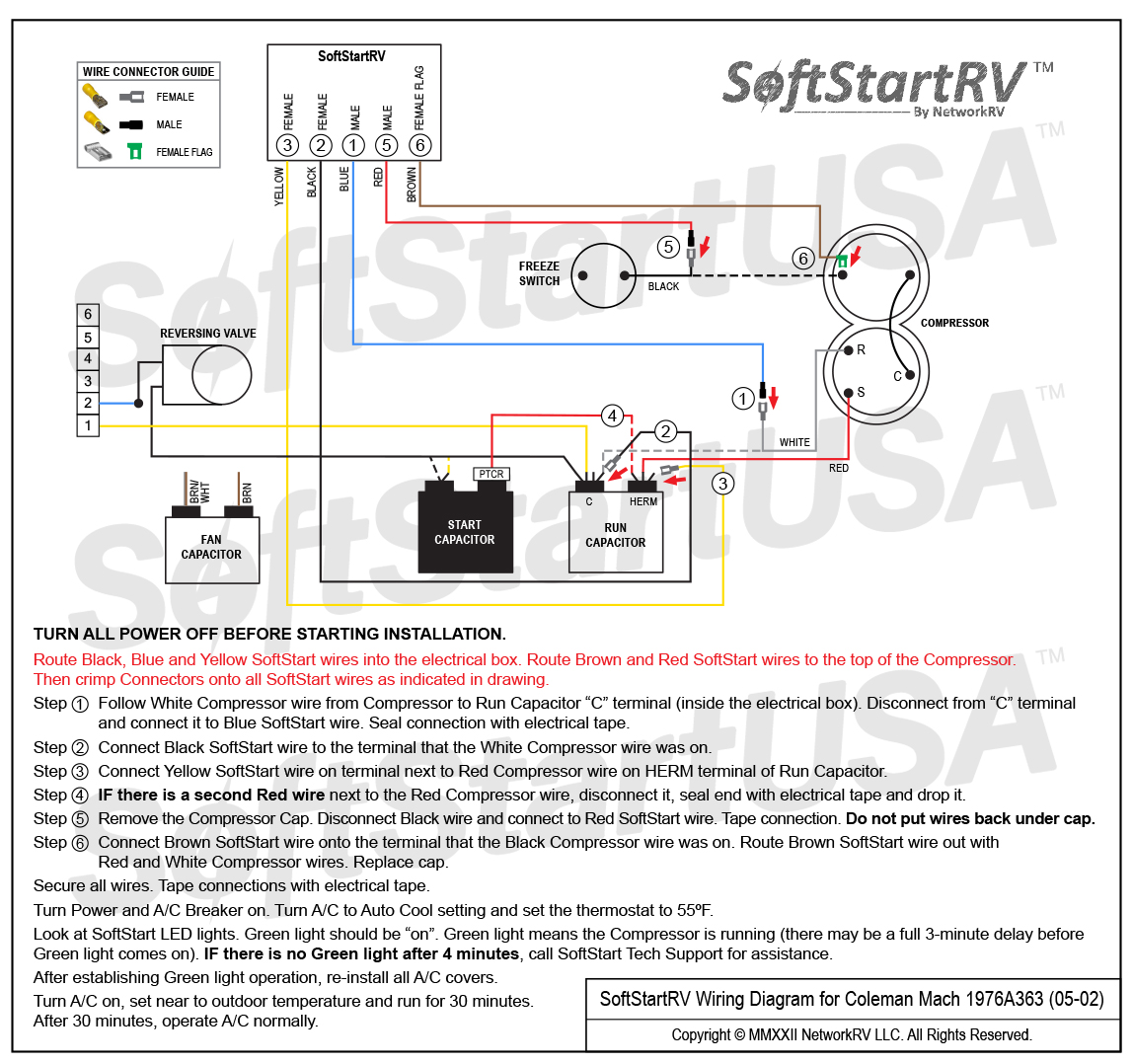

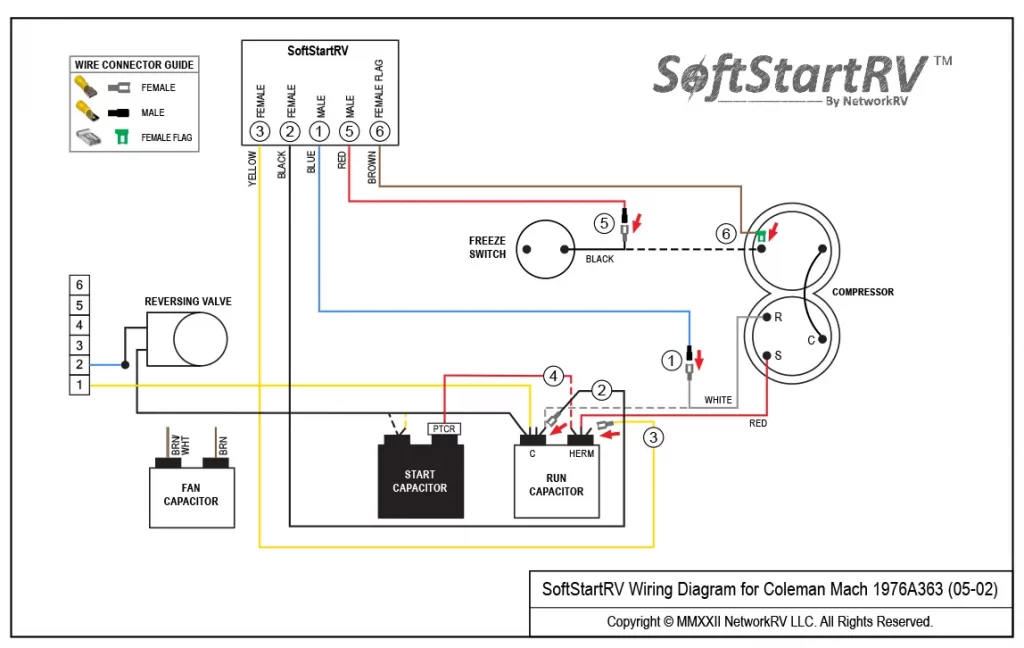

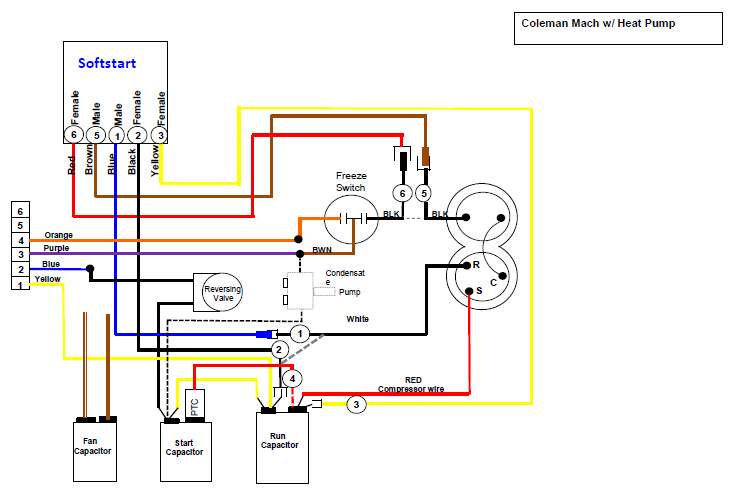

Route ALL Softstart wires into electrical box and Crimp Disconnects on wire as shown in softstart box above

Step 1) Follow White Compressor wire to RUN Capacitor in the Electrical Box, Disconnect from capacitor and connect to Blue Softstart wire

Step 2) Connect Black Softstart wire to terminal White wire was on.

Step 3) Connect Yellow Softstart wire on a Terminal next to Red Compressor wire on Run Capacitor

Step 4) IF you see a 2nd Red Wire next tro Red Compressor wire DISCONNECT and tape it.

Step 5) Follow Black compressor wire midway between Compressor and Freeze Sensor and CUT wire. Crimp a Female disconnect on BLK wire attached to compressor Then connect to Brown Softstart wire.

Step 6) Crimp Male disconnect on other end of cut Blk wire and connect to Red Softstart wire Secure all wire and tools to prevnt Fan from pulling them in

Turn Power and AC breaker on, Turn Fan on Hi for approx 1 min, Turn AC to Auto Cool and set Tstat to 55

Go Look at softstart Green Light should be on (But there can be a 3 min delay sometimes) After a full 3 min if Light is not Green Call Tech Support

Green Light Shut AC off Secure all wires and replace ALL covers Your install is complete

Turn AC Back on and allow to run for at least 30 min
